Simple Stereo Electrets Microphone Preamplifier

Introduction

This design was born of frustration with the mic preamp in my Sony R91. It clips at ridiculously low levels, basically it has 28mV of headroom to deal with an input that could be as high as 1800mV (depending on mic & volume), so this design attempts to cure that by :

A: Providing a higher electret bias voltage, 9V through a 10k resistor to give the mic's fet more headroom. (The R91 provides 2.5V through a 6k8 resistor.)

B: Having much greater preamp headroom, and bypassing the R91's mic preamp altogether, using a hi-fi or low noise op-amp to go straight into the line input.

Design Considerations

The circuit needs to bring the signal from an electret microphone up to a level suitable for a line input. Based on measurement of the microphone output under a range of conditions, I have chosen two gain levels - 2 & 23. 23 is suitable for everyday general recording. 2 is suitable for live music such as a rock concert. There is a output pot to allow fine-tuning of the level if necessary, but it is intended that usually the wiper will be on the land.

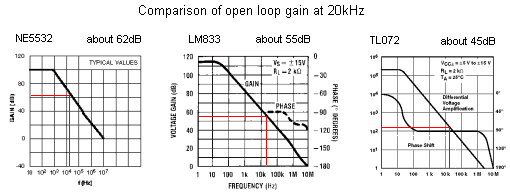

When choosing an op-amp, it's important to find out the open loop gain at 20kHz. The circuit has roughly 27dB of gain, and at least 47dB at 20kHz (i.e. 20dB higher) is desirable. This is because op-amp circuits are predicated on an ideally infinite open loop gain, while in reality 10 times (20dB) higher than the closed loop gain at highest frequency of interest is acceptable. Otherwise the amplifier becomes progressively non-linear. The TL072 at roughly 45dB just makes it. The LM833 is good at �55dB and the NE5532 sparkles at �60+dB.

If you're going for ultra small size, you can build it single supply rail, but an LM833 won't run like that. A TL072 will, with reduced output swing, it'll swing about 1.8VRMS off a single ended 9V supply, which is adequate for the purpose. Otherwise two 9V batteries will do the trick.

Fairly high quality components have been used - 1% metal film resistors, solid aluminium caps, though the output pot is a bit miserable.

Now about these solid aluminium capacitors - in some respects very good capacitors, but I think now I would use 1uF film capacitors as input and output capacitors. They are likely to more closely match the other channel (tighter tolerances), and the golden ear brigade seem to like film capacitors better.

So in summary, it's supposed to have a lot of headroom, be small, quiet, cheap, have a low part count, somewhere between a battery box and a full fledged professional box.

The Circuit

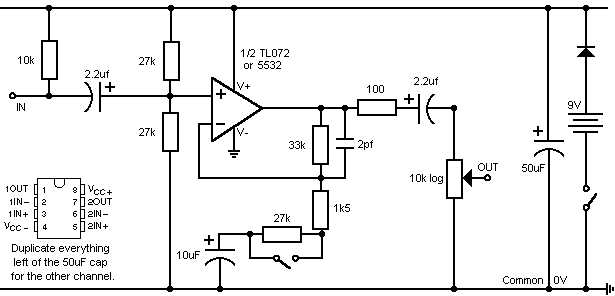

Schematic Of One Channel - Single Rail Version (Slight Difference From Text)

The leftmost 10k resistor supplies plug-in-power to the electret, forming part of the FET amplifier in the electret capsule. This could be anything from 2k to 10k, the higher the better the stereo separation (another mic derives bias from the same rail). Apparently higher values also lower distortion, and the best bias power circuits involve actually breaking a trace on the electret capsule to allow the use of both a drain & source resistor, but I�m not going that far.

The leftmost 2.2uF cap blocks the bias voltage from the input. In conjunction with the following 27k resistor it forms a high pass filter, but cutoff is essentially near DC.

The input impedance is set by the two 27k resistors and the 10k resistor. The +ve rail is also connected to ground as far as the AC signal is concerned because of the power supply cap. So there are two 27k resistors in parallel, making 13.5k, in parallel with the 10k, making about 6k or so for the input impedance. But if you're making it proper dual supply, you don't need the upper 27k resistor, as the input doesn't have to be biased mid rail anymore.

The feedback loop has two resistors 27k & 1k5 from the inverting input to ground. When they are both in circuit, the gain is a bit under 2 ((28.5/33)+1). The 27k resistor can be bypassed with a switch, then only the 1k5 sets the gain, to 23 ((33/1.5)+1).

The 10uF cap in the bottom half of the feedback loop reduces DC gain to ~1. The value isn't very important. If any DC input offset were amplified it would create a larger output offset, pushing the output toward one of the rails and reducing headroom. (At a gain of 23 with the expected input levels it probably doesn't matter.)

The optional 2pF cap in relation to the 33k resistor sets the high frequency rolloff. The cutoff frequency is in the 100�s of kHz. It has to go further than 20kHz to keep the phase shift at audio frequencies small, and also because output starts falling long before cutoff. The op-amps cannot maintain enough gain at these frequencies anyway and their output will already be falling, but the cap makes the circuit more stable, though it will probably work without it. There will probably be 2pF of capacitance just from the PCB traces, and op-amps tend to be fairly well compensated these days so it�s really not needed. I think in retrospect this cutoff frequency should be much lower, say 30kHz-50kHz.

The 100ohm resistors are there partly to limit current to protect the op-amp if the output is shorted, but the op-amps have internal protection anyway. They mainly allow the op-amp to drive capacitive loads (long/cheap cables) without oscillation.

The 2.2uF cap on the output blocks DC and the value is not specially important. It forms a highpass filter with the 10k pot, the cutoff is virtually at DC.

If you think you might accidentally start connecting the battery the wrong way round, you'd better put a diode in series with the battery clip, or you'll smoke your ic. Put your ic in a socket too just in case you do want/need to change it. You could try several dual op-amps against each other, they're all direct plug in replacements.
