Perhaps the most important consideration of an
ADC is its resolution. Resolution is the number of binary bits output
by the converter. Because ADC circuits take in an analog signal, which is
continuously variable, and resolve it into one of many discrete steps, it is
important to know how many of these steps there are in total.
For example, an ADC with a 10-bit output can represent up to 1024 (210)
unique conditions of signal measurement. Over the range of measurement from
0% to 100%, there will be exactly 1024 unique binary numbers output by the
converter (from 0000000000 to 1111111111, inclusive). An 11-bit ADC will
have twice as many states to its output (2048, or 211),
representing twice as many unique conditions of signal measurement between
0% and 100%.
Resolution is very important in data acquisition systems (circuits
designed to interpret and record physical measurements in electronic form).

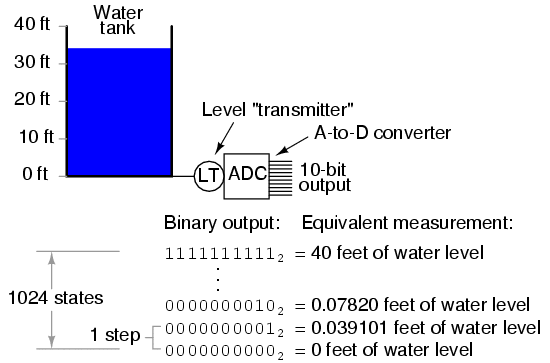

Suppose we were measuring the height of water in a 40-foot tall storage tank
using an instrument with a 10-bit ADC. 0 feet of water in the tank
corresponds to 0% of measurement, while 40 feet of water in the tank
corresponds to 100% of measurement. Because the ADC is fixed at 10 bits of
binary data output, it will interpret any given tank level as one out of
1024 possible states. To determine how much physical water level will be
represented in each step of the ADC, we need to divide the 40 feet of
measurement span by the number of steps in the 0-to-1024 range of
possibilities, which is 1023 (one less than 1024). Doing this, we obtain a
figure of 0.039101 feet per step. This equates to 0.46921 inches per step, a
little less than half an inch of water level represented for every binary
count of the ADC.
This step value of 0.039101 feet (0.46921 inches) represents the smallest
amount of tank level change detectable by the instrument. Admittedly, this
is a small amount, less than 0.1% of the overall measurement span of 40
feet. However, for some applications it may not be fine enough. Suppose we
needed this instrument to be able to indicate tank level changes down to
one-tenth of an inch. In order to achieve this degree of resolution and
still maintain a measurement span of 40 feet, we would need an instrument
with more than ten ADC bits.
To determine how many ADC bits are necessary, we need to first determine
how many 1/10 inch steps there are in 40 feet. The answer to this is
40/(0.1/12), or 4800 1/10 inch steps in 40 feet. Thus, we need enough bits
to provide at least 4800 discrete steps in a binary counting sequence. 10
bits gave us 1023 steps, and we knew this by calculating 2 to the power of
10 (210 = 1024) and then subtracting one. Following the same
mathematical procedure, 211-1 = 2047, 212-1 = 4095,
and 213-1 = 8191. 12 bits falls shy of the amount needed for 4800
steps, while 13 bits is more than enough. Therefore, we need an instrument
with at least 13 bits of resolution.
Another important consideration of ADC circuitry is its sample
frequency, or conversion rate. This is simply the speed at which
the converter outputs a new binary number. Like resolution, this
consideration is linked to the specific application of the ADC. If the
converter is being used to measure slow-changing signals such as level in a
water storage tank, it could probably have a very slow sample frequency and
still perform adequately. Conversely, if it is being used to digitize an
audio frequency signal cycling at several thousand times per second, the
converter needs to be considerably faster.

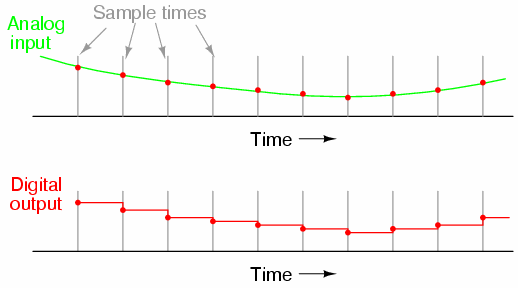

Consider the following illustration of ADC conversion rate versus signal
type, typical of a successive-approximation ADC with regular sample
intervals:
Here, for this slow-changing signal, the sample rate is more than

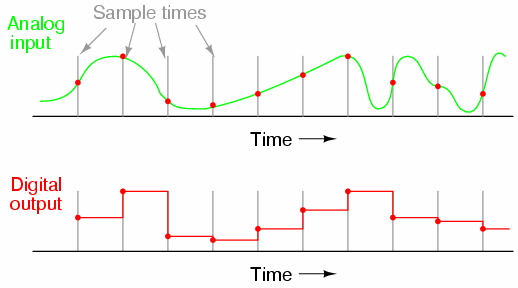

adequate to capture its general trend. But consider this example with
the same sample time:
When the sample period is too long (too slow), substantial details of the
analog signal will be missed. Notice how, especially in the latter portions
of the analog signal, the digital output utterly fails to reproduce the true
shape. Even in the first section of the analog waveform, the digital
reproduction deviates substantially from the true shape of the wave.
It is imperative that an ADC's sample time is fast enough to capture
essential changes in the analog waveform. In data acquisition terminology,
the highest-frequency waveform that an ADC can theoretically capture is the
so-called Nyquist frequency, equal to one-half of the ADC's sample
frequency. Therefore, if an ADC circuit has a sample frequency of 5000 Hz,
the highest-frequency waveform it can successfully resolve will be the
Nyquist frequency of 2500 Hz.
If an ADC is subjected to an analog input signal whose frequency exceeds
the Nyquist frequency for that ADC, the converter will output a digitized
signal of falsely low frequency. This phenomenon is known as aliasing.

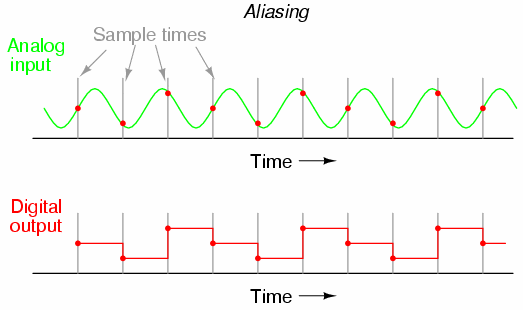

Observe the following illustration to see how aliasing occurs:

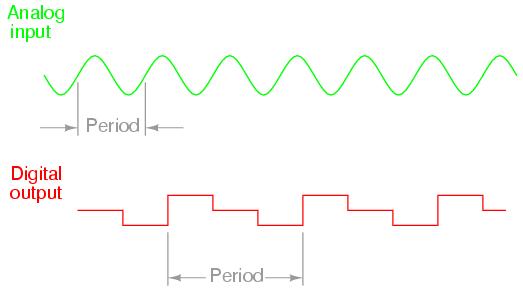

Note how the period of the output waveform is much longer (slower) than
that of the input waveform, and how the two waveform shapes aren't even
similar:
It should be understood that the Nyquist frequency is an absolute
maximum frequency limit for an ADC, and does not represent the highest
practical frequency measurable. To be safe, one shouldn't expect an ADC
to successfully resolve any frequency greater than one-fifth to one-tenth of
its sample frequency.
A practical means of preventing aliasing is to place a low-pass filter
before the input of the ADC, to block any signal frequencies greater than
the practical limit. This way, the ADC circuitry will be prevented from
seeing any excessive frequencies and thus will not try to digitize them. It
is generally considered better that such frequencies go unconverted than to
have them be "aliased" and appear in the output as false signals.
Yet another measure of ADC performance is something called step
recovery. This is a measure of how quickly an ADC changes its output to
match a large, sudden change in the analog input. In some converter
technologies especially, step recovery is a serious limitation. One example
is the tracking converter, which has a typically fast update period but a
disproportionately slow step recovery.
An ideal ADC has a great many bits for very fine resolution, samples at
lightning-fast speeds, and recovers from steps instantly. It also,
unfortunately, doesn't exist in the real world. Of course, any of these
traits may be improved through additional circuit complexity, either in
terms of increased component count and/or special circuit designs made to
run at higher clock speeds. Different ADC technologies, though, have
different strengths. Here is a summary of them ranked from best to worst:
Resolution/complexity ratio:
Single-slope integrating, dual-slope integrating, counter, tracking,
successive approximation, flash.
Speed:
Flash, tracking, successive approximation, single-slope integrating &
counter, dual-slope integrating.
Step recovery:
Flash, successive-approximation, single-slope integrating & counter,
dual-slope integrating, tracking.
Please bear in mind that the rankings of these different ADC technologies
depend on other factors. For instance, how an ADC rates on step recovery
depends on the nature of the step change. A tracking ADC is equally slow to
respond to all step changes, whereas a single-slope or counter ADC will
register a high-to-low step change quicker than a low-to-high step change.
Successive-approximation ADCs are almost equally fast at resolving any
analog signal, but a tracking ADC will consistently beat a
successive-approximation ADC if the signal is changing slower than one
resolution step per clock pulse. I ranked integrating converters as having a
greater resolution/complexity ratio than counter converters, but this
assumes that precision analog integrator circuits are less complex to design
and manufacture than precision DACs required within counter-based
converters. Others may not agree with this assumption. |
