| Band-pass filtersThere are applications where a particular
                    band, or spread, or frequencies need to be filtered from a
                    wider range of mixed signals. Filter circuits can be
                    designed to accomplish this task by combining the properties
                    of low-pass and high-pass into a single filter. The result
                    is called a band-pass filter. Creating a bandpass
                    filter from a low-pass and high-pass filter can be
                    illustrated using block diagrams:
                      What emerges from the series combination of
                    these two filter circuits is a circuit that will only allow
                    passage of those frequencies that are neither too high nor

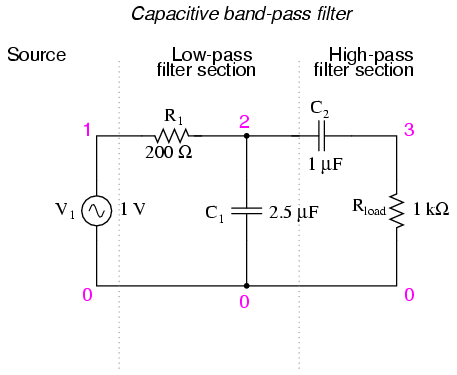

                    too low. Using real components, here is what a typical
                    schematic might look like:


 capacitive bandpass filter
v1 1 0 ac 1 sin
r1 1 2 200
c1 2 0 2.5u
c2 2 3 1u
rload 3 0 1k
.ac lin 20 100 500
.plot ac v(3)
.end
 freq       v(3)   4.467E-01    5.012E-01    5.623E-01    6.310E-01
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1.000E+02  4.703E-01 .     *       .             .             .
1.211E+02  5.155E-01 .             .  *          .             .
1.421E+02  5.469E-01 .             .          *  .             .
1.632E+02  5.676E-01 .             .             .*            .
1.842E+02  5.801E-01 .             .             .   *         .
2.053E+02  5.865E-01 .             .             .    *        .
2.263E+02  5.882E-01 .             .             .    *        .
2.474E+02  5.864E-01 .             .             .    *        .
2.684E+02  5.820E-01 .             .             .   *         .
2.895E+02  5.755E-01 .             .             .  *          .
3.105E+02  5.676E-01 .             .             .*            .
3.316E+02  5.585E-01 .             .            *.             .
3.526E+02  5.487E-01 .             .          *  .             .
3.737E+02  5.384E-01 .             .        *    .             .
3.947E+02  5.277E-01 .             .     *       .             .
4.158E+02  5.169E-01 .             .   *         .             .
4.368E+02  5.060E-01 .             .*            .             .
4.579E+02  4.951E-01 .            *.             .             .
4.789E+02  4.843E-01 .         *   .             .             .
5.000E+02  4.736E-01 .      *      .             .             .
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Load voltage peaks within narrow frequency range
 Band-pass filters can also be constructed
                    using inductors, but as mentioned before, the reactive
                    "purity" of capacitors gives them a design advantage. If we
                    were to design a bandpass filter using inductors, it might
                    look something like this:
                      The fact that the high-pass section comes
                    "first" in this design instead of the low-pass section makes
                    no difference in its overall operation. It will still filter
                    out all frequencies too high or too low.  While the general idea of combining low-pass
                    and high-pass filters together to make a bandpass filter is
                    sound, it is not without certain limitations. Because this
                    type of band-pass filter works by relying on either section
                    to block unwanted frequencies, it can be difficult to
                    design such a filter to allow unhindered passage within the
                    desired frequency range. Both the low-pass and high-pass
                    sections will always be blocking signals to some extent, and
                    their combined effort makes for an attenuated (reduced
                    amplitude) signal at best, even at the peak of the
                    "pass-band" frequency range. Notice the curve peak on the
                    previous SPICE analysis: the load voltage of this filter
                    never rises above 0.59 volts, although the source voltage is
                    a full volt. This signal attenuation becomes more pronounced
                    if the filter is designed to be more selective (steeper
                    curve, narrower band of passable frequencies).  There are other methods to achieve band-pass
                    operation without sacrificing signal strength within the
                    pass-band. We will discuss those methods a little later in
                    this chapter.

                      REVIEW:
                      A band-pass filter works to screen
                      out frequencies that are too low or too high, giving easy
                      passage only to frequencies within a certain range.
                      Band-pass filters can be made by stacking
                      a low-pass filter on the end of a high-pass filter, or
                      visa-versa.
                      "Attenuate" means to reduce or diminish in
                      amplitude. When you turn down the volume control on your
                      stereo, you are "attenuating" the signal being sent to the
                      speakers.  |
