| Component failure
                    analysisThe job of a technician frequently entails
                    "troubleshooting" (locating and correcting a problem) in
                    malfunctioning circuits. Good troubleshooting is a demanding
                    and rewarding effort, requiring a thorough understanding of
                    the basic concepts, the ability to formulate hypotheses
                    (proposed explanations of an effect), the ability to judge
                    the value of different hypotheses based on their probability
                    (how likely one particular cause may be over another), and a
                    sense of creativity in applying a solution to rectify the
                    problem. While it is possible to distill these skills into a
                    scientific methodology, most practiced troubleshooters would
                    agree that troubleshooting involves a touch of art, and that
                    it can take years of experience to fully develop this art.
                     An essential skill to have is a ready and
                    intuitive understanding of how component faults affect
                    circuits in different configurations. We will explore some
                    of the effects of component faults in both series and
                    parallel circuits here, then to a greater degree at the end

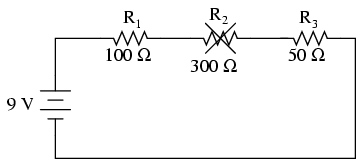

                    of the "Series-Parallel Combination Circuits" chapter.  Let's start with a simple series circuit:

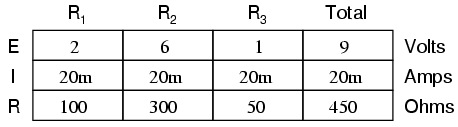

                      With all components in this circuit
                    functioning at their proper values, we can mathematically
                    determine all currents and voltage drops:

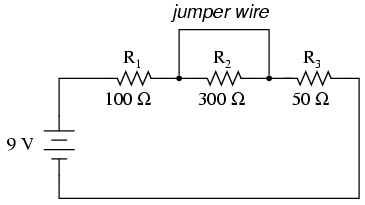

                      Now let us suppose that R2 fails
                    shorted. Shorted means that the resistor now acts
                    like a straight piece of wire, with little or no resistance.
                    The circuit will behave as though a "jumper" wire were
                    connected across R2 (in case you were wondering,
                    "jumper wire" is a common term for a temporary wire
                    connection in a circuit). What causes the shorted condition
                    of R2 is no matter to us in this example; we only
                    care about its effect upon the circuit:
                      With R2 shorted, either by a
                    jumper wire or by an internal resistor failure, the total
                    circuit resistance will decrease. Since the voltage
                    output by the battery is a constant (at least in our ideal
                    simulation here), a decrease in total circuit resistance
                    means that total circuit current must increase:

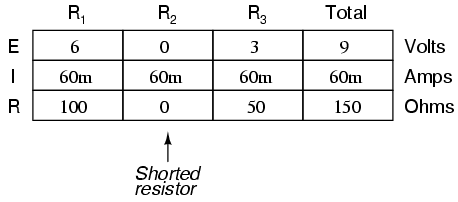

                      As the circuit current increases from 20
                    milliamps to 60 milliamps, the voltage drops across R1
                    and R3 (which haven't changed resistances)
                    increase as well, so that the two resistors are dropping the
                    whole 9 volts. R2, being bypassed by the very low
                    resistance of the jumper wire, is effectively eliminated
                    from the circuit, the resistance from one lead to the other
                    having been reduced to zero. Thus, the voltage drop across R2,
                    even with the increased total current, is zero volts.  On the other hand, if R2 were to
                    fail "open" -- resistance increasing to nearly infinite
                    levels -- it would also create wide-reaching effects in the
                    rest of the circuit:

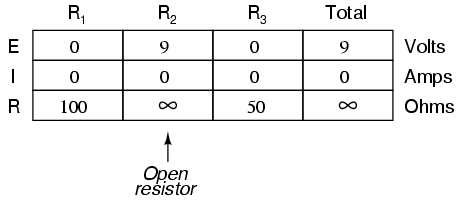

                      With R2 at infinite resistance
                    and total resistance being the sum of all individual
                    resistances in a series circuit, the total current decreases
                    to zero. With zero circuit current, there is no electron
                    flow to produce voltage drops across R1 or R3.
                    R2, on the other hand, will manifest the full

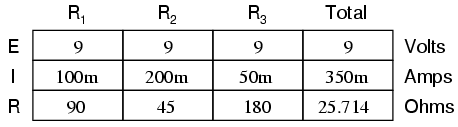

                    supply voltage across its terminals.  We can apply the same before/after analysis
                    technique to parallel circuits as well. First, we determine
                    what a "healthy" parallel circuit should behave like.

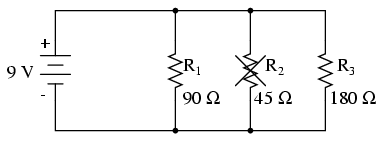

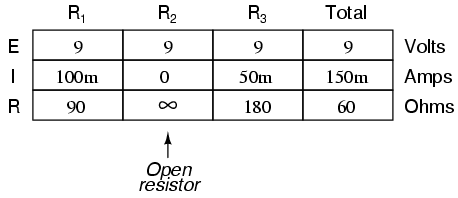

                      Supposing that R2 opens in this
                    parallel circuit, here's what the effects will be:



                      Notice that in this parallel circuit, an
                    open branch only affects the current through that branch and
                    the circuit's total current. Total voltage -- being shared
                    equally across all components in a parallel circuit, will be
                    the same for all resistors. Due to the fact that the voltage
                    source's tendency is to hold voltage constant, its
                    voltage will not change, and being in parallel with all the
                    resistors, it will hold all the resistors' voltages the same
                    as they were before: 9 volts. Being that voltage is the only
                    common parameter in a parallel circuit, and the other
                    resistors haven't changed resistance value, their respective

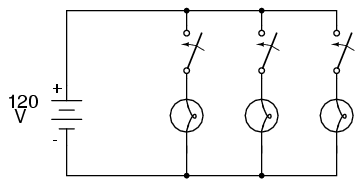

                    branch currents remain unchanged.  This is what happens in a household lamp
                    circuit: all lamps get their operating voltage from power
                    wiring arranged in a parallel fashion. Turning one lamp on
                    and off (one branch in that parallel circuit closing and
                    opening) doesn't affect the operation of other lamps in the
                    room, only the current in that one lamp (branch circuit) and
                    the total current powering all the lamps in the room:

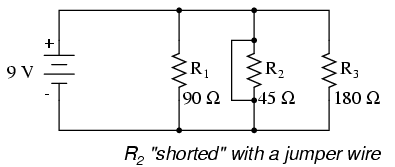

                      In an ideal case (with perfect voltage
                    sources and zero-resistance connecting wire), shorted
                    resistors in a simple parallel circuit will also have no
                    effect on what's happening in other branches of the circuit.
                    In real life, the effect is not quite the same, and we'll
                    see why in the following example:

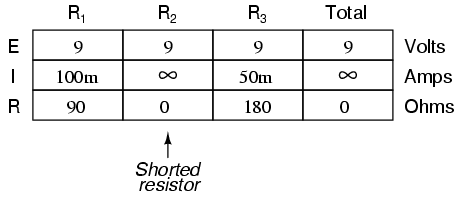

                      A shorted resistor (resistance of 0 Ω) would
                    theoretically draw infinite current from any finite source
                    of voltage (I=E/0). In this case, the zero resistance of R2
                    decreases the circuit total resistance to zero Ω as well,
                    increasing total current to a value of infinity. As long as
                    the voltage source holds steady at 9 volts, however, the
                    other branch currents (IR1 and IR3)
                    will remain unchanged.  The critical assumption in this "perfect"
                    scheme, however, is that the voltage supply will hold steady
                    at its rated voltage while supplying an infinite amount of
                    current to a short-circuit load. This is simply not
                    realistic. Even if the short has a small amount of
                    resistance (as opposed to absolutely zero resistance), no
                    real voltage source could arbitrarily supply a huge
                    overload current and maintain steady voltage at the same
                    time. This is primarily due to the internal resistance
                    intrinsic to all electrical power sources, stemming from the
                    inescapable physical properties of the materials they're
                    constructed of:
                      These internal resistances, small as they
                    may be, turn our simple parallel circuit into a
                    series-parallel combination circuit. Usually, the internal
                    resistances of voltage sources are low enough that they can
                    be safely ignored, but when high currents resulting from
                    shorted components are encountered, their effects become

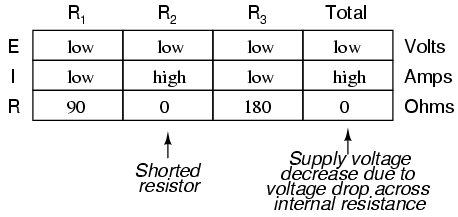

                    very noticeable. In this case, a shorted R2 would
                    result in almost all the voltage being dropped across the
                    internal resistance of the battery, with almost no voltage
                    left over for resistors R1, R2, and R3:




                      Suffice it to say, intentional direct
                    short-circuits across the terminals of any voltage source is
                    a bad idea. Even if the resulting high current (heat,
                    flashes, sparks) causes no harm to people nearby, the
                    voltage source will likely sustain damage, unless it has
                    been specifically designed to handle short-circuits, which
                    most voltage sources are not.  Eventually in this book I will lead you
                    through the analysis of circuits without the use of any
                    numbers, that is, analyzing the effects of component
                    failure in a circuit without knowing exactly how many volts
                    the battery produces, how many ohms of resistance is in each
                    resistor, etc. This section serves as an introductory step
                    to that kind of analysis.  Whereas the normal application of Ohm's Law
                    and the rules of series and parallel circuits is performed
                    with numerical quantities ("quantitative"), this new
                    kind of analysis without precise numerical figures something
                    I like to call qualitative analysis. In other words,
                    we will be analyzing the qualities of the effects in
                    a circuit rather than the precise quantities. The
                    result, for you, will be a much deeper intuitive
                    understanding of electric circuit operation.

                      REVIEW:
                      To determine what would happen in a
                      circuit if a component fails, re-draw that circuit with
                      the equivalent resistance of the failed component in place
                      and re-calculate all values.
                      The ability to intuitively determine what
                      will happen to a circuit with any given component fault is
                      a crucial skill for any electronics troubleshooter
                      to develop. The best way to learn is to experiment with
                      circuit calculations and real-life circuits, paying close
                      attention to what changes with a fault, what remains the
                      same, and why!
                      A shorted component is one whose
                      resistance has dramatically decreased.
                      An open component is one whose
                      resistance has dramatically increased. For the record,
                      resistors tend to fail open more often than fail shorted,
                      and they almost never fail unless physically or
                      electrically overstressed (physically abused or
                      overheated).  |
