| 4-wire resistance measurementPARTS AND MATERIALS  It would be ideal in this experiment to have
                    two meters: one voltmeter and one ammeter. For experimenters
                    on a budget, this may not be possible. Whatever ammeter is
                    used should be capable measuring at least a few amps of
                    current. A 6-volt "lantern" battery essentially
                    short-circuited by a long piece of wire may produce currents
                    of this magnitude, and your ammeter needs to be capable of
                    measuring it without blowing a fuse or sustaining other
                    damage. Make sure the highest current range on the meter is
                    at least 5 amps!    CROSS-REFERENCES  Lessons In Electric Circuits, Volume
                    1, chapter 8: "DC Metering Circuits"    LEARNING OBJECTIVES

 SCHEMATIC DIAGRAM


 ILLUSTRATION


 INSTRUCTIONS  Although this experiment is best performed
                    with two meters, and indeed is shown as such in the
                    schematic diagram and illustration, one multimeter is
                    sufficient.  Most ohmmeters operate on the principle of
                    applying a small voltage across an unknown resistance (Runknown)
                    and inferring resistance from the amount of current drawn by
                    it. Except in special cases such as the megger, both
                    the voltage and current quantities employed by the meter are
                    quite small.  This presents a problem for measurement of
                    low resistances, as a low resistance specimen may be of much
                    smaller resistance value than the meter circuitry itself.
                    Imagine trying to measure the diameter of a cotton thread
                    with a yardstick, or measuring the weight of a coin with a
                    scale built for weighing freight trucks, and you will
                    appreciate the problem at hand.  One of the many sources of error in
                    measuring small resistances with an ordinary ohmmeter is the

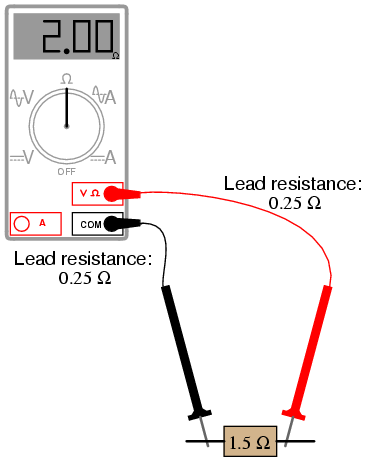

                    resistance of the ohmmeter's own test leads. Being part of
                    the measurement circuit, the test leads may contain more
                    resistance than the resistance of the test specimen,
                    incurring significant measurement error by their presence:

                      One solution is called the Kelvin, or
                    4-wire, resistance measurement method. It involves
                    the use of an ammeter and voltmeter, determining specimen
                    resistance by Ohm's Law calculation. A current is passed
                    through the unknown resistance and measured. The voltage
                    dropped across the resistance is measured by the voltmeter,
                    and resistance calculated using Ohm's Law (R=E/I). Very
                    small resistances may be measured easily by using large
                    current, providing a more easily measured voltage drop from
                    which to infer resistance than if a small current were used.
                     Because only the voltage dropped by the
                    unknown resistance is factored into the calculation -- not
                    the voltage dropped across the ammeter's test leads or any
                    other connecting wires carrying the main current -- errors
                    otherwise caused by these stray resistances are completely
                    eliminated.  First, select a suitably low resistance
                    specimen to use in this experiment. I suggest the
                    electromagnet coil specified in the last chapter, or a spool

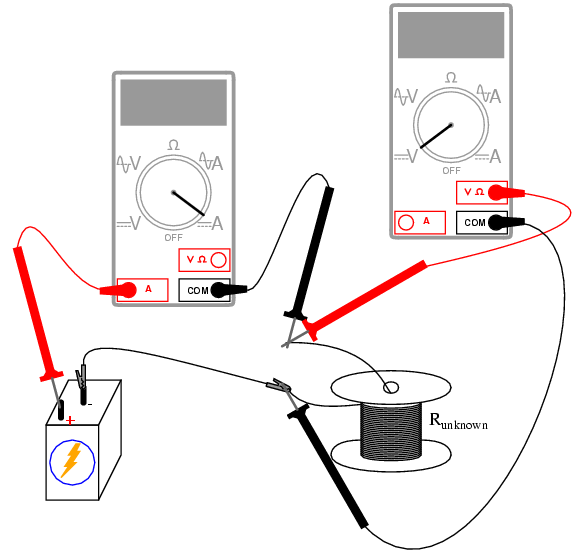

                    of wire where both ends may be accessed. Connect a 6-volt
                    battery to this specimen, with an ammeter connected in
                    series. WARNING: the ammeter used should be capable
                    of measuring at least 5 amps of current, so that it will not
                    be damaged by the (possibly) high current generated in this
                    near-short circuit condition. If you have a second meter,
                    use it to measure voltage across the specimen's connection
                    points, as shown in the illustration, and record both
                    meters' indications.  If you have only one meter, use it to
                    measure current first, recording its indication as quickly
                    as possible, then immediately opening (breaking) the
                    circuit. Switch the meter to its voltage mode, connect it
                    across the specimen's connection points, and re-connect the
                    battery, quickly noting the voltage indication. You don't
                    want to leave the battery connected to the specimen for any
                    longer than necessary for obtaining meter measurements, as
                    it will begin to rapidly discharge due to the high circuit
                    current, thus compromising measurement accuracy when the
                    meter is re-configured and the circuit closed once more for
                    the next measurement. When two meters are used, this is not
                    as significant an issue, because the current and voltage
                    indications may be recorded simultaneously.  Take the voltage measurement and divide it
                    by the current measurement. The quotient will be equal to
                    the specimen's resistance in ohms.  |
